GR POWERLOCK II™ SELF-LOADING GUNRACK TRAILER

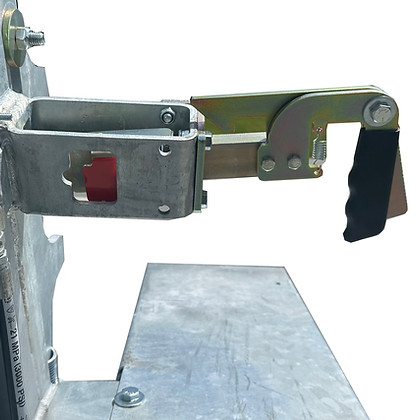

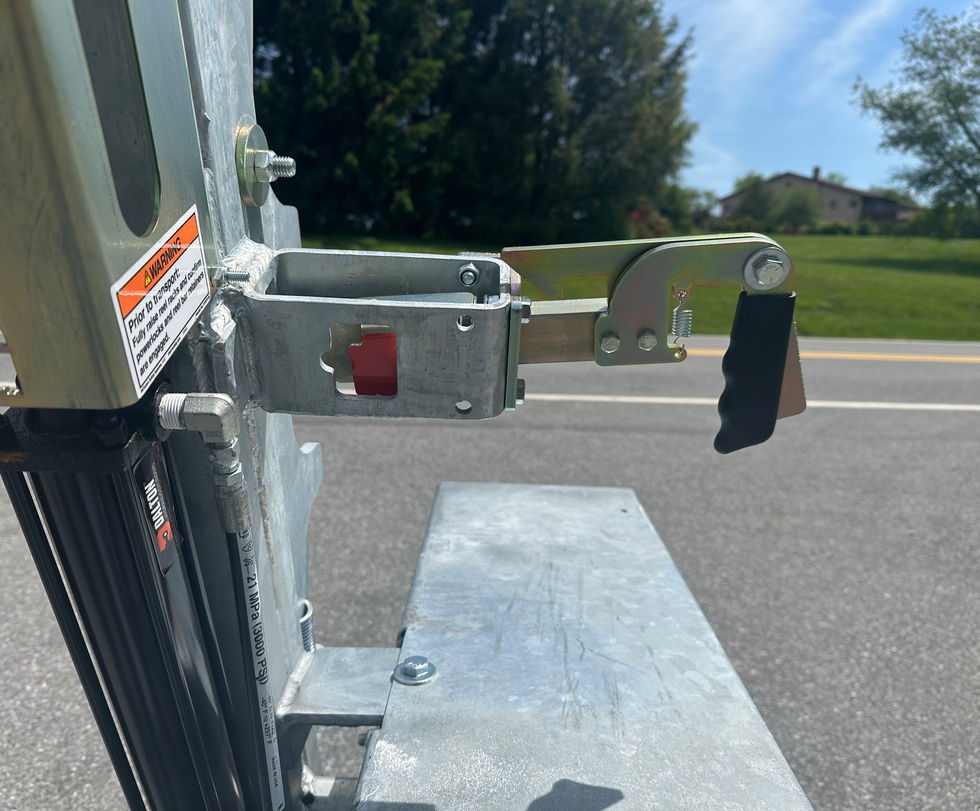

This severe duty unit is the industry's most ruggedly built gunrack reel trailer specially tailored for the underground market. It is impossible to lose a pin or reel on the highway because there are no pins to secure the reel. All REELSTRONG models are engineered to this end; however, the GR Powerlock II™ reel-securing design intuitively secures the reel with no possibility of losing a reel-securing pin that results in costly down time, maintenance, and possible liability. If the reel lock is not secured a red warning is visible in your rearview mirror. If it is locked, a green indicator is visible (see illustration below). The reel lock has a safety catch to ensure it is fully locked in place and will not pop out.

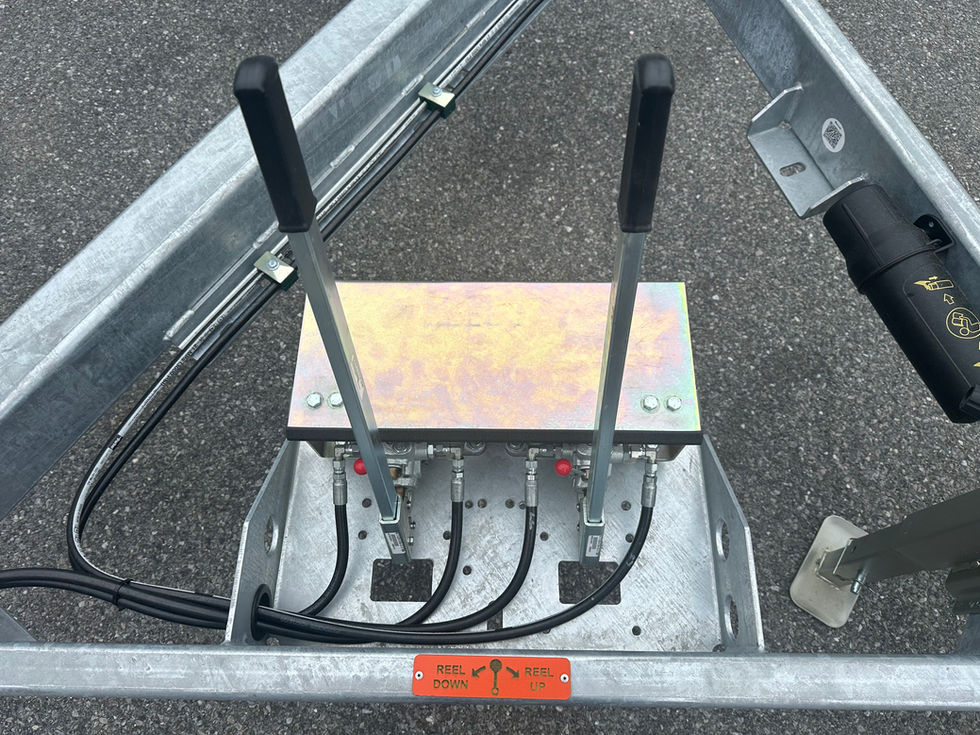

We provide the industry's best hand pump that powers up and powers "down", eliminating operators from unsafely jumping up and down on the reel bar which is common with competitor models.
The GR is visibly built far more rugged than the competition and with just the right (marginal) extra weight to lower the amount of bouncing down the road when empty. The GR (and the competition's gunrack design) has no cross-axle suspension so large reels can be hauled by pick-up trucks and center-of-gravity kept low).
POWERLOCK II™ DESIGN
• Safety 1st
• Peace of Mind
• Faster Loading and Unloading
• Much Easier to Use
MAX REEL SPECS:
-
125" Diameter
-
60.5" Reel Opening w/o Collars (GR8)
-
-
64" Reel Opening w/o Collars (GR10)
-
8,500 lbs. (GR8)
-
10,000 lbs. (GR10)
STANDARD VALUE ADDED FEATURES
-
RED/GREEN Indicators to Show if Lock is Engaged.
-
Secondary Latch Mechanism as a Redundancy.
-
Bi-Directional Hand Pumps that Power-Up and Power-Down
-
Hand Pump Guards to Protect from the Elements and Physical Damage.
-
Guards Protect Cylinder Rods from Physical damage.
-
Bolt-on Fenders for Easy Replacement
-
Powerlock II™ Mechanisms Bolt Together for Easy Replacement
