LA22

LA24

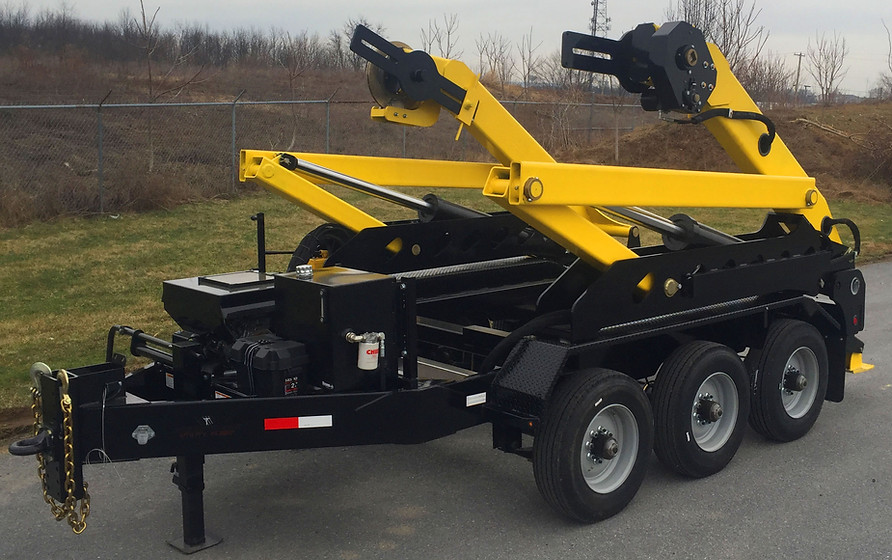

The ARBORLESS LA eliminates back-breaking and time-consuming 5" Reel Bars.  The lift arms lower and clamp the reel for the safest and easiest to use heavy haul self-loader on the market. The reel nests down between the axles for a Low Center of Gravity which is crucial when transporting heavy reels around turns.

PRINTABLE SPEC

VALUE ADDED STANDARD FEATURES

• Low COG

​

• Direct Drive

  NO RIM DRIVE SLIPPAGE

​

• No Heavy 5" Reel Bar

REEL WEIGHT:  22K and 24K lbs Payloads

REEL DIA:  120"

REEL WIDTH:  72"

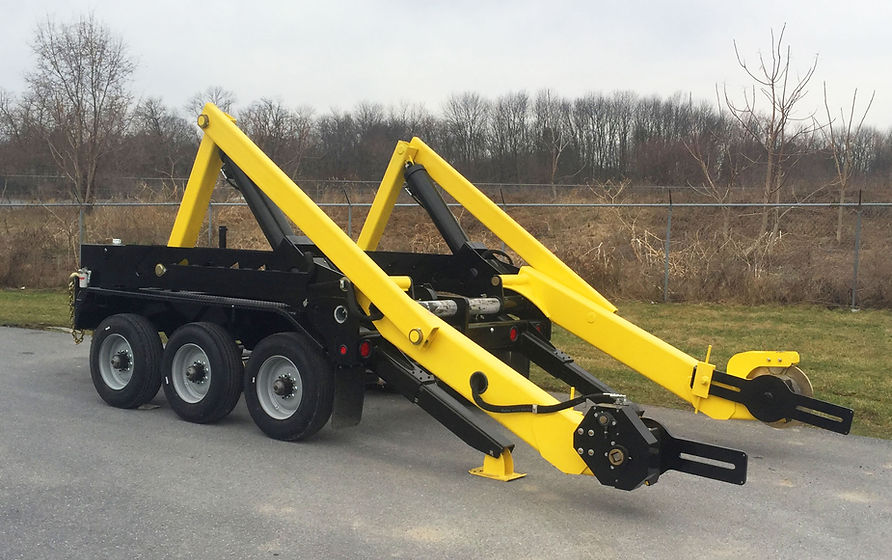

• Lift arms hydraulically adjust to reel diameter and width. Width is adjusted by ACME  threaded rods. If a hydraulic hose to the clamp motor is damaged it's virtually impossible for the clamp arm to open and drop reel.

​

• Removes and installs cable through complete range of lift arm motion to make underground/manhole or overhead applications easier.

​

OPTIONS:

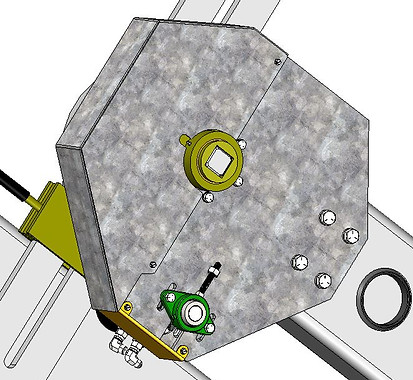

TAKE-UP RETRIEVER

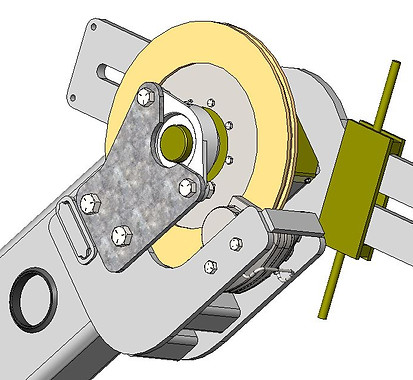

20" VENTILATED SELF-COOLING REEL BRAKE

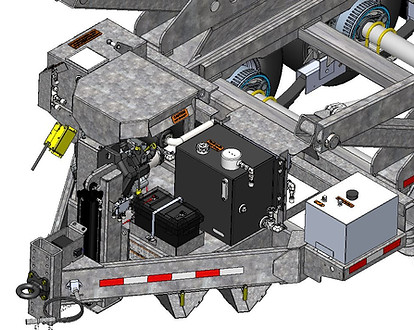

35 HP ENGINE PACK COMES STANDARD W/ ENGINE COVER

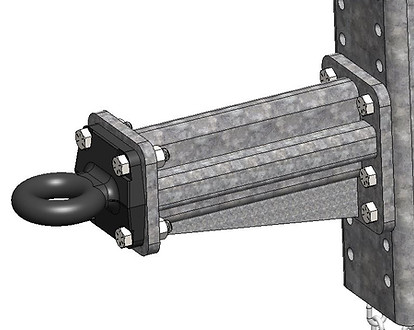

16" LONG 6-BOLT HITCH EXTENSION

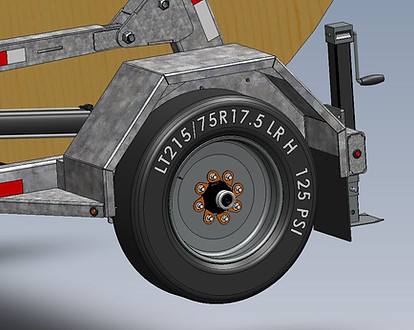

LUG NUT INDICATORS

GALLERY

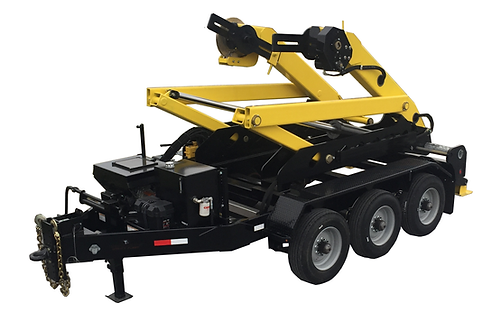

 24,000 LB CAPACITY for 120' REEL

VIDEO

DEMOS

CUSTOM 16K w/out ENGINE UNIT. RUNS OFF TRUCK HYDRAULICS

QUICK DISCONNECTS TO POWER HYDRAULICS FROM TRUCK TOOL CIRCUIT
