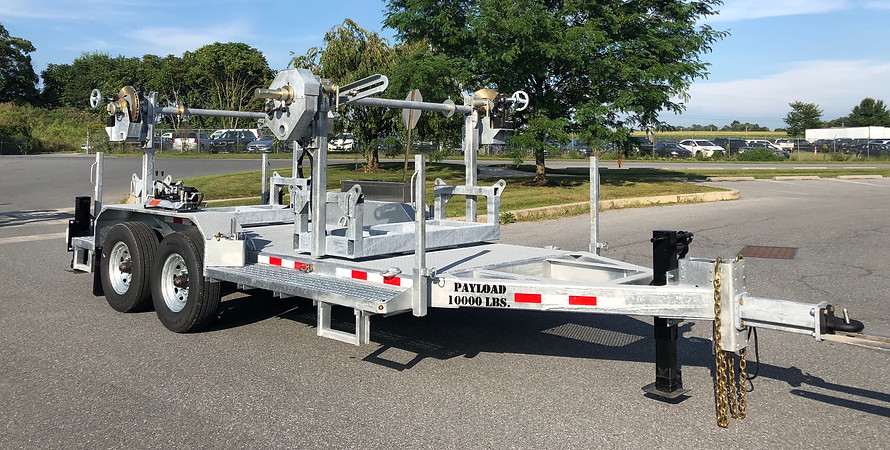

PL-2RT POWERLOCK™ DOUBLE TURRET
VALUE ADDED STANDARD FEATURES
PINLESS POWERLOCK™ LIFETIME WARRANTY
VIRTUALLY ZERO MAINTENANCE
Yellow Zinc Electroplated
• INDUSTRY LEADING 20" OVERSIZED TURRET BEARING
250K Axial, 90K ft/lbs Moment Load Lockable on 3 Deg. Intervals
• OPEN TOP, "NON ENCAPSULATED" NYLATRON BEARING SADDLE (low-coefficient of friction). OPEN TOP = LESS FRICTION/LOW MAINTENANCE and EASIER PAY-OUT.
(Haven't Replaced a Saddle in 13 Years)
REEL WEIGHT: 5K - 7K
REEL DIAMETER: 72" (84 and 96" Available as Custom)
REEL WIDTH: 54" (60" Available as Custom)
POWERLOCK™ = OPEN
POWERLOCK™ = CLOSED
Pull the POWERLOCK™ and it automatically stays open. Just tap down on handle and it positively shuts w/ HIGH TENSION. There's nothing heavier duty, lower maintenance, easier to use or safer. COMPARE TO COMPETITION MINI-SPRING
NOTE: WE'VE NEVER REPLACED A POWERLOCK OR NYLATRON BEARING IN 10 YEARS DUE TO WEAR.
OPEN CUT TURRET BEARING SECTION
INDUSTRY LEADING 250K lbs Axial and 90K ft/lbs Moment Load Sealed Thrust Bearings Lockable on 3 Deg. Intervals
OPEN TURRET SECTION
Turret with Top Cover Removed to Reveal Turret Bearing Assembly Below
HYDRAULIC HOSE ROTARY SWIVEL UNION
Keeps Hoses from Getting Entangled and Damaged
(Optional)
OPTIONS:
16" VENTILATED TRU-STOP SELF-COOLING
REEL BRAKE W/ VENTILATED GUARD.
PULL/LOCK TYPE. NOTHING TO DISASSEMBLE.
3,300 FT/LBS RETRIEVER
(Universal Capstan Adapter Optional)
SELF-SECURED BAYONET/DIRECT
DRIVE ADAPTER
REEL BRAKE w/ RETRIEVER COMBO
16" VENTILATED TRU-STOP SELF-COOLING
REEL BRAKE W/ VENTILATED GUARD.
DROP-IN TYPE. NOTHING TO
DISASSEMBLE.
HYDRAULIC HOSE ROTARY SWIVEL UNION
(Underside)
Standard When 13HP POWER PACK and RETRIEVER Chosen
CENTRAL OPERATOR'S STATION w/ FULL FEATHERING VALVES AND FLOW DIVIDER FOR SIMULTANEOUS ACTUATION. 21 HP ENGINE REQUIRED TO MAINTAIN SPEED and TORQUE OF SINGLE REEL APPLICATION
STAINLESS STEEL TOOLBOX
13 HP HONDA ENGINE HYDRAULIC POWER PACK
COMES STANDARD W/ ENGINE COVER
NON-SLIP SAND PAINTED SURFACES and ALL WEATHER GALVANIZED WHEEL CHOCKS w/ SAFETY CHAIN AND CARABINER
16" LONG 6-BOLT HITCH EXTENSION
3-CUP POINT SET-SCREW PRECISION MACHINED CONICAL LIFTING LUG AND CENTERING COLLAR OPTION
LUG NUT INDICATORS
ROTATING ARBOR GROUND
GALLERY
3-POINT CONTACT HANDLES AND STEPS STANDARD

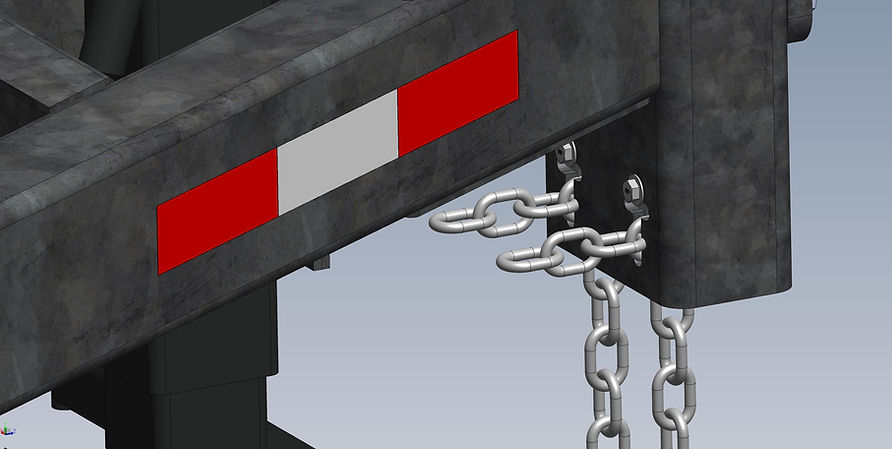

CRUCIFIX SAFETY CHAIN RETENTION. Pulls "STRAIGHT" From Underneath Frontward
3-POINT CONTACT REMOVABLE STEP / HANDLE
WITH CUSTOM SUBSTATION RECOVERY REELS
