THE ORIGINAL PINLESS LEGACY BRAND
PL-3RT POWERLOCK™ TRIPLE TURRET
TANDEM DUAL 3 X 7K REELS w/ 35HP ENGINE AND FULL-FEATHERING CENTRAL VALVE BANK CONTROLS and Pre-Cambered Frame for Ultimate Strength
TANDEM SINGLE FOR 3 X 5K Reels
VALUE ADD STANDARD FEATURES
PINLESS POWERLOCK™ LIFETIME WARRANTY
VIRTUALLY ZERO MAINTENANCE
Yellow Zinc Electroplated
• INDUSTRY LEADING 20" OVERSIZED TURRET BEARING
250K Axial, 90K ft/lbs Moment Load Lockable on 3 Deg. Intervals
• OPEN TOP, "NON ENCAPSULATED" NYLATRON BEARING SADDLE (low-coefficient of friction). OPEN TOP = LESS FRICTION/LOW MAINTENANCE and EASIER PAY-OUT.
CAPACITY OPTIONS:
5K REEL- Tandem Axle
72" Dia X 54" Wide
7K REEL = Tandem Dual Axle
84" Dia X 60" Wide (Deckover)
8K REEL = Tandem Dual Axle
84" Dia X 60" Wide (Deckover)
POWERLOCK™ = OPEN
POWERLOCK™ = CLOSED
Pull the POWERLOCK™ and it automatically stays open. Just tap down on handle and it positively shuts w/ HIGH TENSION. There's nothing heavier duty, lower maintenance, easier to use or safer.
WE'VE NEVER REPLACED A POWERLOCK OR NYLATRON BEARING IN 15 YEARS DUE TO WEAR.
OPEN CUT TURRET BEARING SECTION
INDUSTRY LEADING 250K lbs Axial and 90K ft/lbs Moment Load Sealed Thrust Bearings Lockable on 3 Deg. Intervals
OPEN TURRET SECTION
Turret with Top Cover Removed to Reveal Turret Bearing Assembly Below
HYDRAULIC HOSE ROTARY SWIVEL UNION
Keeps Hoses from Getting Entangled and Damaged
(Optional)
OPTIONS:
_.jpg)
Full Upper and Lower Roller Package
Overhead Gathering Windows
Arching URD Gathering Window
Economy URD Gathering Window
Telescoping Rear and Intermediate Stabilizer Jacks
Telescoping Rear and Intermediate Hydraulic Outriggers
16" VENTILATED TRU-STOP SELF-COOLING
REEL BRAKE W/ VENTILATED GUARD.
PULL/LOCK TYPE. NOTHING TO DISASSEMBLE.
3,300 FT/LBS RETRIEVER
(Universal Capstan Adapter Optional)
SELF-SECURED BAYONET/DIRECT
DRIVE ADAPTER
REEL BRAKE w/ RETRIEVER COMBO
16" VENTILATED TRU-STOP SELF-COOLING
REEL BRAKE W/ VENTILATED GUARD.
DROP-IN TYPE. NOTHING TO
DISASSEMBLE.
HYDRAULIC HOSE ROTARY SWIVEL UNION
(Underside)
Standard When 13HP POWER PACK and RETRIEVER Chosen
13 HP HONDA ENGINE HYDRAULIC POWER PACK
COMES STANDARD W/ ENGINE COVER
3.jpg)
CENTRAL VALVE BANK w/ 3-WAY FLOW-DIVIDER & FULL-FEATHERING/FINE-METERING VALVES for SUPERIOR SPEED CONTROL
(FOR THE 13 HP HYDRAULIC POWER PACK)

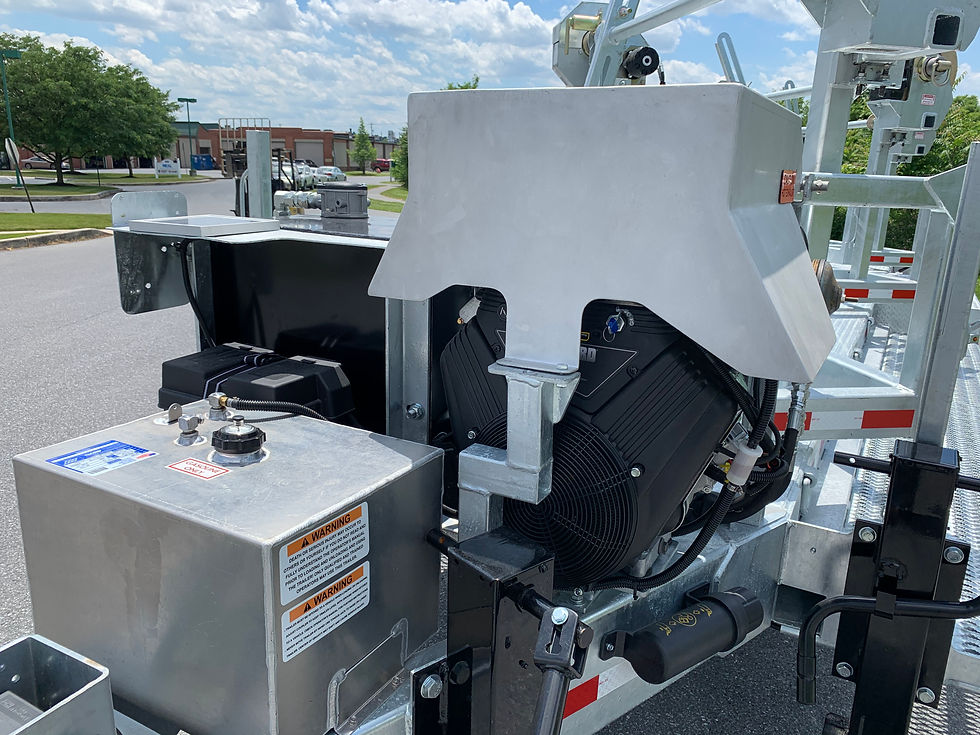

SELF-CONTAINED 35HP VANGUARD POWER STATION w/ Variable Displacement Pump (Maintains Max Speed and Torque of all Reels Simultaneously ILO Standard Slower, Steady Speed of Three (3) Reels Simultaneously. COMES STANDARD W/ ENGINE COVER. INQUIRE FOR DETAILS
CENTRAL VALVE BANK w/ TRIPLE FINE-METERING FLOW CONTROLS & DETENTED VALVES
(FOR THE 35 HP HYDRAULIC POWER STATION)
HYDRAULIC ROTATE TURRET
(TURRET TOWER REMOVED FOR REVIEW OF WORM GEAR)
CUSTOM SECTIONAL CABLE REEL
PRECISION MACHINED, YELLOW ZINC-ELECTROPLATED, 3-POINT SET-SCREW CONE LIFTING LUG & CENTERING COLLAR
16" LONG 8-BOLT HITCH EXTENSION
LUG NUT INDICATORS
ROTATING ARBOR GROUND
GALLERY
PL-3RT5 TANDEM SINGLE for 3 X 5K CAPACITY REEL PICS

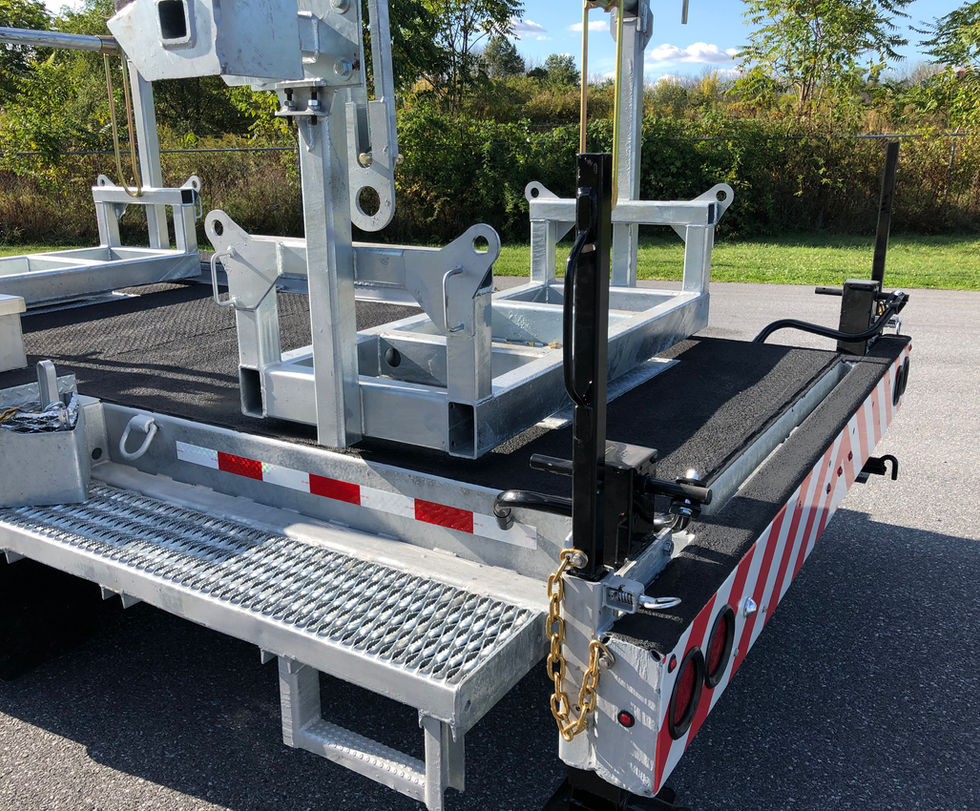

(NON-SLIP SAND PAINT OPTION SHOWN)
STANDARD REMOVABLE HANDLE HOLD & STEP FOR 3-POINT CONTACT REQUIREMENTS
SUPERIOR NON-SLIP CATWALK CONSTRUCTION
PL-3RT7 TANDEM DUAL for 3 X 7K CAPACITY REEL PICS
PL-3RT8 TANDEM DUAL w/ AIR BRAKES for 3 X 8K REEL CAPACITY PICS
OTHER PL-3RT PICS
%202.jpg)
OPTIONAL UNIVERSAL BAYONET ADAPTERS (NO DISASSEMBLY REQUIRED)
CRUCIFIX CHAIN RETENTION
