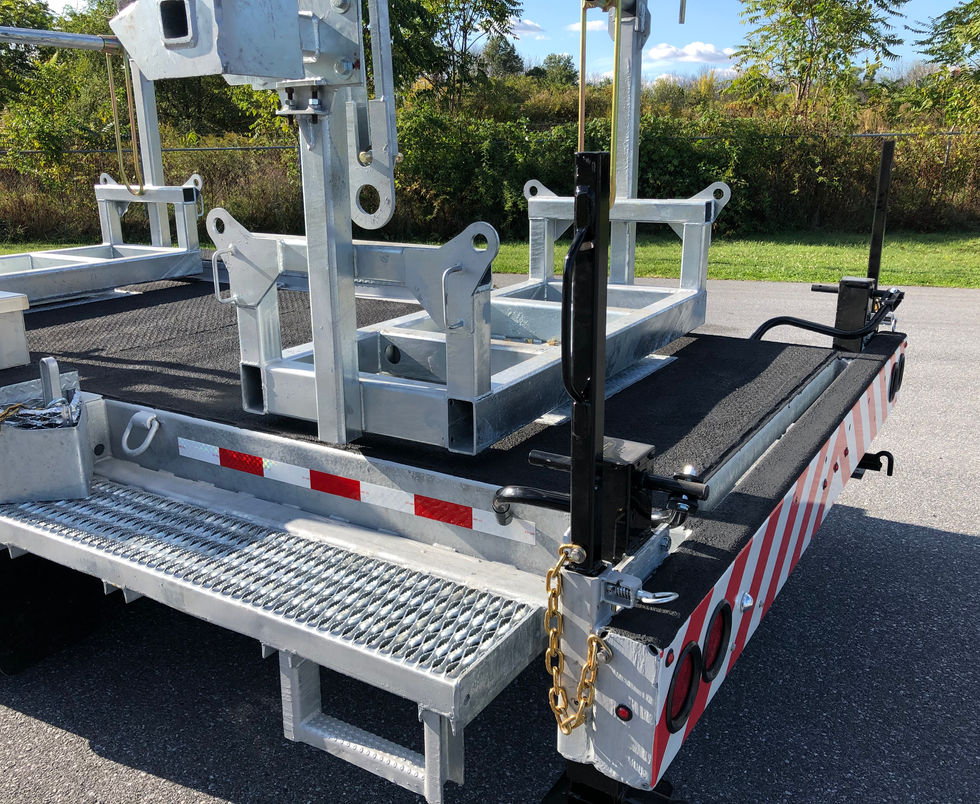

PL-4RT POWERLOCK™ QUAD TURRET
VALUE ADD STANDARD FEATURES
REEL WEIGHT: 5k
REEL DIA: 72" (Customizable)
REEL WIDTH: 54" (Customizable)
PINLESS POWERLOCK™ LIFETIME WARRANTY
VIRTUALLY ZERO MAINTENANCE
Yellow Zinc Electroplated
• INDUSTRY LEADING 20" OVERSIZED TURRET BEARING
250K Axial, 90K ft/lbs Moment Load Lockable on 3 Deg. Intervals
• OPEN TOP, "NON ENCAPSULATED" NYLATRON BEARING SADDLE (low-coefficient of friction). OPEN TOP = LESS FRICTION/LOW MAINTENANCE and EASIER PAY-OUT.

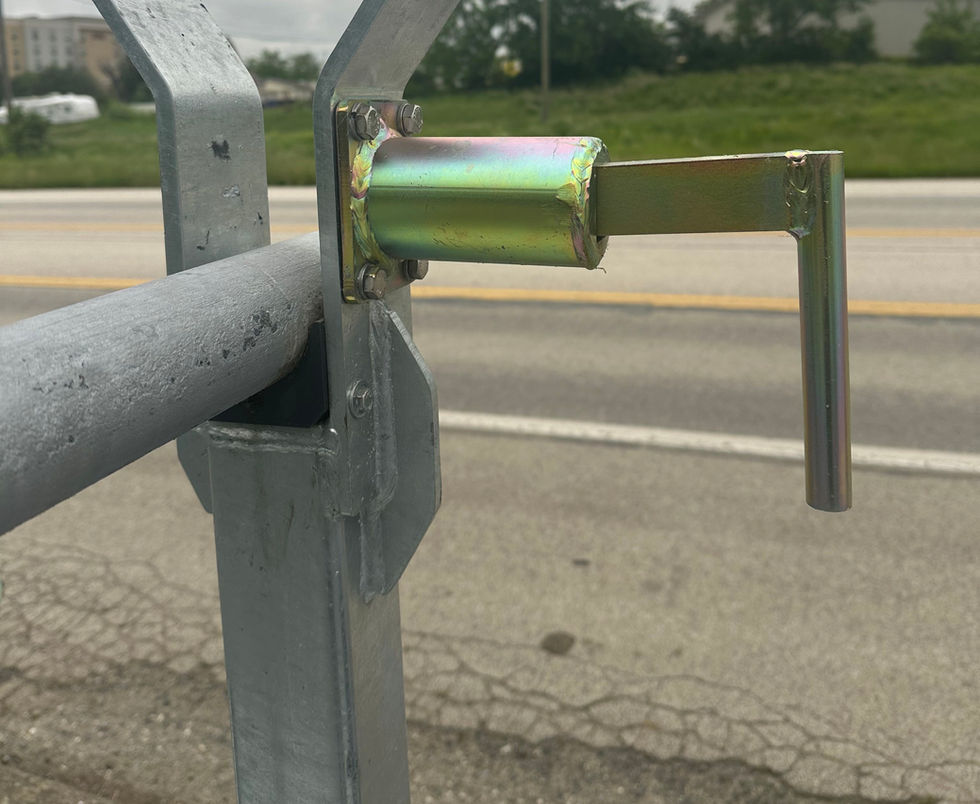

POWERLOCK™ = OPEN

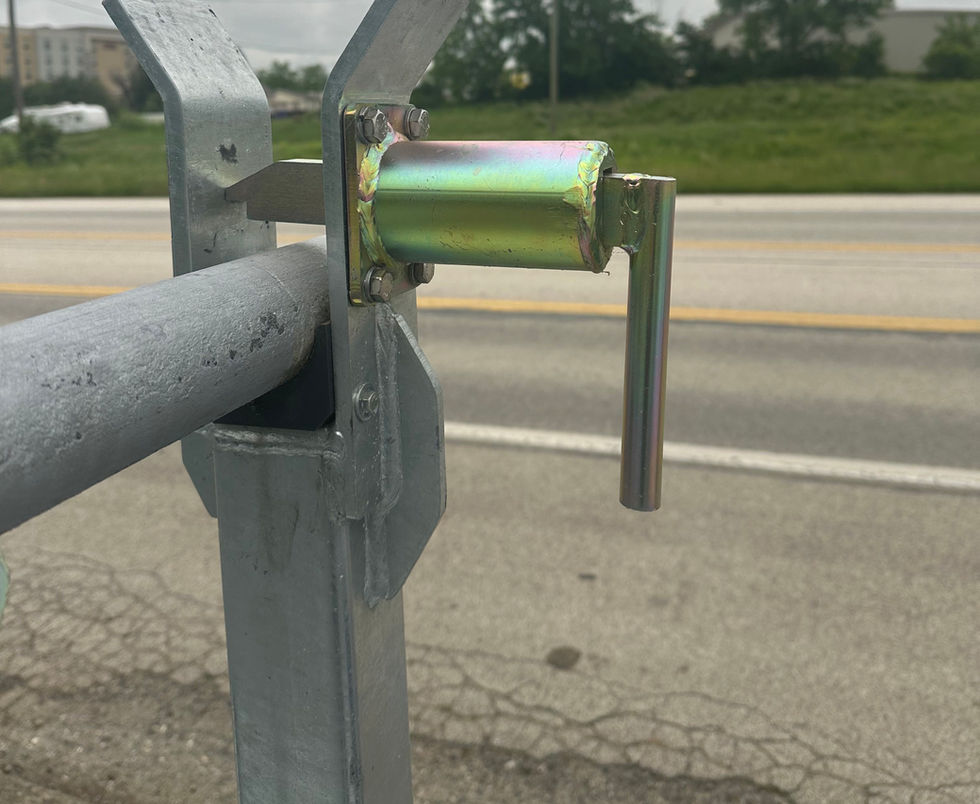

POWERLOCK™ = CLOSED
Pull the POWERLOCK™ and it automatically stays open. Just tap down on handle and it positively shuts w/ HIGH TENSION. There's nothing heavier duty, lower maintenance, easier to use or safer. COMPARE TO COMPETITION MINI-SPRING.
NOTE: WE'VE NEVER REPLACED A POWERLOCK OR NYLATRON BEARING IN 13 YEARS DUE TO WEAR.
OPEN CUT TURRET BEARING SECTION
INDUSTRY LEADING 250K lbs Axial and 90K ft/lbs Moment Load Sealed Thrust Bearings Lockable on 3 Deg. Intervals
OPEN CUT TURRET SECTION
Turret with Top Cover Removed to Reveal Turret Bearing Assembly Below
HYDRAULIC HOSE
ROTARY SWIVEL UNION
Keeps Hoses from Getting
Entangled and Damaged
(Optional)
OPTIONS:
16" VENTILATED TRU-STOP SELF-COOLING
REEL BRAKE W/ VENTILATED GUARD.
PULL/LOCK TYPE. NOTHING TO DISASSEMBLE.
3,300 FT/LBS RETRIEVER
(Universal Capstan Adapter Optional)
SELF-SECURED BAYONET/DIRECT
DRIVE ADAPTER
REEL BRAKE w/ RETRIEVER COMBO
16" VENTILATED TRU-STOP SELF-COOLING
REEL BRAKE W/ VENTILATED GUARD.
DROP-IN TYPE. NOTHING TO DISASSEMBLE.
16" LONG 8-BOLT HITCH EXTENSION
13 HP HONDA ENGINE HYDRAULIC POWER PACK COMES STANDARD W/ ENGINE COVER
SELF-CONTAINED 35HP VANGUARD POWER STATION w/ Variable Displacement Pump (Maintains Max Speed and Torque of all Reels Simultaneously ILO Standard Slower, Steady Speed of Four (4) Reels Simultaneously. COMES STANDARD W/ ENGINE COVER. INQUIRE FOR DETAILS
3-CUP POINT SET-SCREW PRECISION MACHINED CONICAL LIFTING LUG AND CENTERING COLLAR OPTION
LUG NUT INDICATORS
ROTATING ARBOR GROUND
GALLERY
OVERSIZED 20" TURRET BEARING FOR SAFETY (INDUSTRY LEADER)
CUSTOM SECTIONAL REEL
