TANDEM DUAL 3 X 8K REELS w/ 35HP ENGINE AND FULL-FEATHERING CENTRAL VALVE BANK CONTROLS and Pre-Cambered Frame for Ultimate Strength

Tandem Single for 3 X5K Reels

TRI-AXLE w/ 10K REEL CAPACITY

PRINTABLE SPECS

VALUE ADD STANDARD FEATURES

PINLESS POWERLOCK™ LIFETIME WARRANTY

VIRTUALLY ZERO MAINTENANCE

Yellow Zinc Electroplated

​

• INDUSTRY LEADING  20" OVERSIZED TURRET BEARING

250K Axial, 90K ft/lbs Moment Load Lockable on 6 Deg. Intervals

​

• OPEN TOP, "NON ENCAPSULATED" NYLATRON BEARING SADDLE (low-coefficient of friction). OPEN TOP =  LESS FRICTION/LOW MAINTENANCE and EASIER PAY-OUT.

CAPACITY OPTIONS:

5K REEL- Tandem Axle

72" Dia X 54" Wide

8K REEL = Tandem Dual Axle

84" Dia X 60" Wide (Deckover)

​

10K REEL- Tri-Axle

96" Dia X 60" Wide (Deckover)

POWERLOCK™ = OPEN

POWERLOCK™ = CLOSED

Pull the POWERLOCK™ and it automatically stays open. Just tap down on handle and it positively shuts w/ HIGH TENSION. There's nothing heavier duty, lower maintenance, easier to use or safer. COMPARE TO COMPETITION MINI-SPRING

NOTE: WE'VE NEVER REPLACED A POWERLOCK OR NYLATRON BEARING IN 10 YEARS DUE TO WEAR.

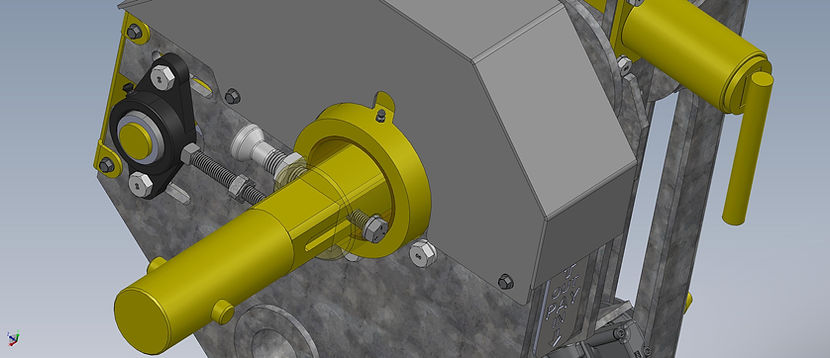

SPOTLIGHT 2020! SELF-SECURED BAYONET/DIRECT DRIVE ADAPTER STANDARD. NOTHING TO DISSASEMBLE

OPEN CUT TURRET BEARING SECTION

INDUSTRY LEADING 250K lbs Axial and 90K ft/lbs Moment Load Sealed Thrust Bearings Lockable on 6 Deg. Intervals

​

OPEN TURRET SECTION

Turret with Top Cover Removed to Reveal Turret Bearing Assembly Below

HYDRAULIC HOSE ROTARY SWIVEL UNION

Keeps Hoses from Getting Entangled and Damaged

OPTIONS:

Full Upper and Lower Roller Package

Overhead Gathering Windows

Arching URD Gathering Window

Economy URD Gathering Window

Telescoping Rear and Intermediate Stabilizer Jacks

Telescoping Rear and Intermediate Hydraulic Outriggers

16" VENTILATED SELF-COOLING REEL BRAKE

3,300 FT/LBS RETRIEVER

(Universal Capstan Adapter STANDARD)

​

REEL BRAKE w/ RETRIEVER COMBO

HYDRAULIC HOSE ROTARY SWIVEL UNION

(Underside)

Standard When 13HP POWER PACK and RETRIEVER Chosen

ROTATING ARBOR GROUND

13 HP HONDA ENGINE HYDRAULIC POWER PACK

COMES STANDARD W/ ENGINE COVER

CENTRAL VALVE BANK w/ 3-WAY FLOW-DIVIDER & FULL-FEATHERING/FINE-METERING VALVES for SUPERIOR SPEED CONTROL

(FOR THE 13 HP HYDRAULIC POWER PACK)

SELF-CONTAINED 35HP  VANGUARD POWER STATION w/ Variable Displacement Pump (Maintains Max Speed and Torque of all Reels Simultaneously ILO Standard Slower, Steady Speed of Three (3) Reels Simultaneously. COMES STANDARD W/ ENGINE COVER. INQUIRE FOR DETAILS

CENTRAL VALVE BANK w/ TRIPLE FINE-METERING FLOW CONTROLS & DETENTED VALVES

(FOR THE 35 HP HYDRAULIC POWER STATION)

HYDRAULIC ROTATE TURRET

(TURRET TOWER REMOVED FOR REVIEW OF WORM GEAR)

CUSTOM SECTIONAL CABLE REEL

PRECISION MACHINED, YELLOW ZINC-ELECTROPLATED, 3-POINT SET-SCREW CONE LIFTING LUG & CENTERING COLLAR

16" LONG 6-BOLT HITCH EXTENSION

LUG NUT INDICATORS

GALLERY

TANDEM DUAL w/ 3 X 8K CAPACITY REEL PICS

TANDEM SINGLE for 3 X 5K CAPACITY REEL PICS

(NON-SLIP SAND PAINT OPTION SHOWN)

STANDARD REMOVABLE HANDLE HOLD & STEP FOR 3-POINT CONTACT REQUIREMENTS

SUPERIOR NON-SLIP CATWALK CONSTRUCTION

TRI-AXLE 10K REEL CAPACITY

STANDARD UNIVERSAL BAYONET ADAPTERS (NO DISASSEMBLY REQUIRED)

CRUCIFIX CHAIN RETENTION
